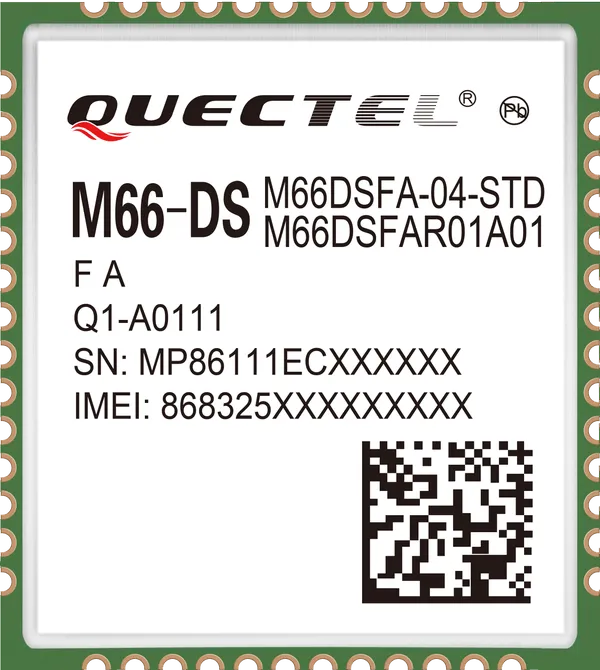

MÓDULO CELULAR M66 QUECTEL
ATENCIÓN: Usted debe registrar el equipo que fabrique con este módulo en el operador celular que le venda la SIM Card. Si pasados 15 días de uso el cliente final no hace el registro, el operador bloqueará su IMEI y el módulo no podrá conectarse a la red celular. El IMEI viene impreso en la superficie del módulo.
M66 es actualmente el módulo GSM / GPRS más pequeño de cuatro bandas en el mercado, que viene en un empaquetado LCC. Basado en el último chipset 2G, tiene el rendimiento óptimo en SMS y de datos transmisión y servicio de audio incluso en el ambiente difícil. Su ultra-compacto tamaño 15,8 × 17,7 × 2,3 mm hace que el M66 sea ideal para aplicaciones sensibles tamaño.
CARACTERÍSTICAS:
Quad-band
|
850/ 900/ 1800/ 1900 MHz
|
GPRS Multi-slot Class
|
Class 12
|
GPRS Mobile Station
|
Class B
|
Compliant to GSM Phase 2/2+
|
Class 4 (2W @ 850/ 900 MHz)
Class 1(1W @ 1800/1900MHz) |
Supply Voltage Range
|
3.3~4.6V 4.0V nominal
|
Low Power Consumption
|
1.3mA @ DRX=5
1.2mA @ DRX=9 |
Operation Temperature
|
-40 °C to +85 °C
|
Dimensions
|
17.7 × 15.8 × 2.3mm
|
Weight
|
Approx. 1.3g
|
Control via AT commands
|
GSM 07.07 ,07.05 and other enhanced AT Commands
|
Specifications for Data
|
|
GPRS Class 12
|
Max. 85.6kbps (uplink & downlink)
|
PBCCH Support
|
|
Coding Schemes
|
CS 1, 2, 3, 4
|
USSD
|
|
Non Transparent Mode
|
|
Protocols
|
TCP/ UDP/ PPP/ FTP/ HTTP/ SMTP/ SSL
|
Specifications for SMS
|
|
Point-to-point MO and MT
|
|
SMS Cell Broadcast
|
|
Text and PDU Mode
|
|
Specifications for Voice
|
|
Speech Codec Modes
|
Half Rate (HR)
Full Rate (FR) Enhanced Full Rate (EFR) Adaptive Multi-Rate (AMR) |
Echo Arithmetic
|
Echo Cancellation
Echo Suppression Noise Reduction |
Interfaces
|
|
SIM/ USIM
|
3V/ 1.8V
|
UART
|
× 3
|
Analog Audio Chanel
|
2 output channels and 1 input channel
|
Bluetooth
|
BT 3.0*
Profile: SPP*,OPP*, HFP* |
ADC
|
×1
|
PCM
|
×1
|
RTC
|
×1
|
Antenna PAD
|
× 2 (One for GSM antenna, the other for
Bluetooth antenna) |
* En desarrollo
