Kit de Desarrollo para los módulos celulares de Quectel. Permite realizar pruebas de funcionamiento con los módulos desde su computador, por ejemplo para ver como responde a los comandos AT. Para ponerlo a funcionar debe adquirir adicionalmente el módulo desea probar, tenemos los siguientes:
M10-TE-A, M95F-TE-A, MC60-TE-A KIT, M66-TE-A, UG95-TE-A, UC15-TE-A y M85-TE-A.
EVB Componments and Interface
A: Debug port
B: Serial port
C: Test points
D: Adapter interface
E: LED indicating module status
F: PWRKEY button
G: EMERG_OFF button
H: VBAT switch
I: VCHG switch (charging function)
J: Download switch
K: 60 pins M10-TE-A interface
L: Screw holes for fixing the module
M: Earphone interface
N: Handset interface of audio channel 2
O: Handset interface of audio channel 1
P: Fixture hole for RF cable connector
Q: Fixture holes for EVB poles
R: SIM card interface
S: UART port 3 |

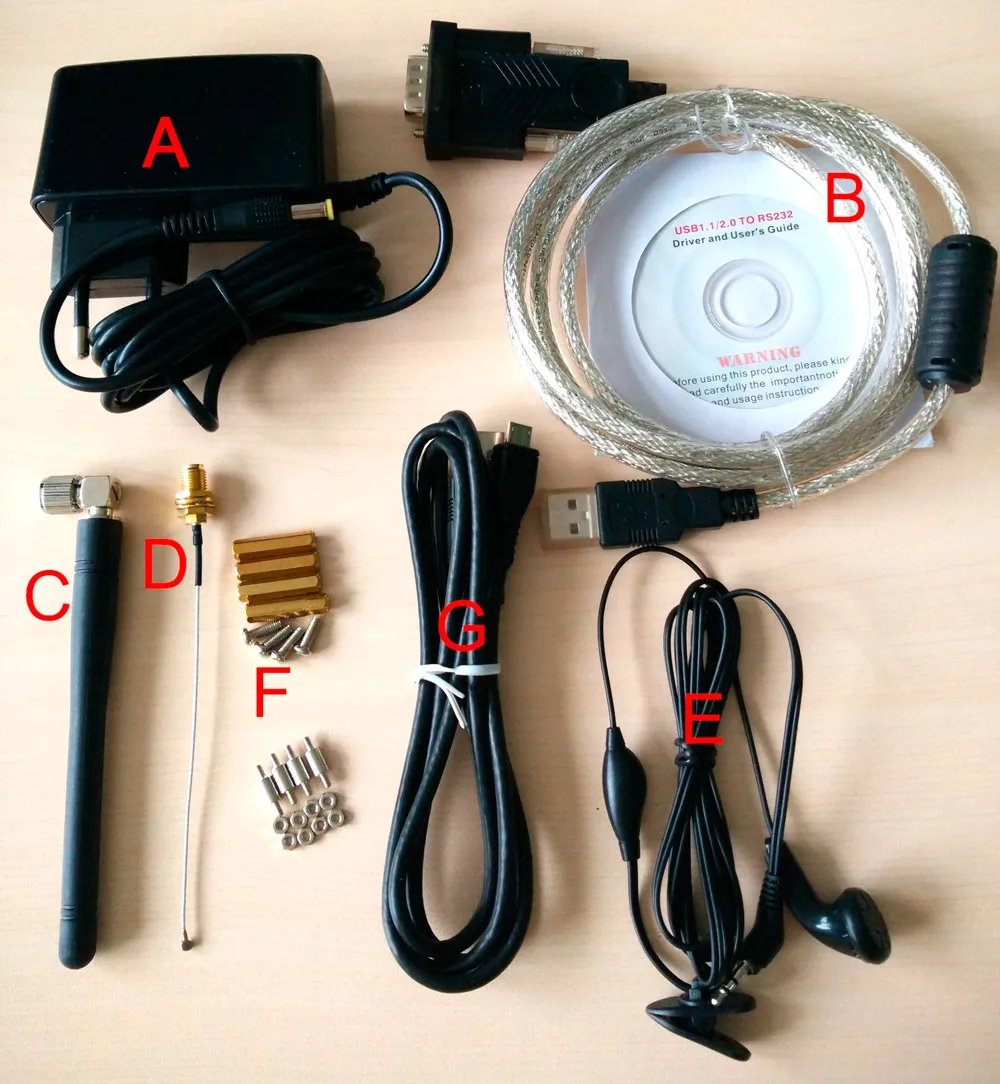

EVB Kit including
A: 5V DC switching adapter
B: USB to UART converter cable
C: Antenna
D: RF cable
E: Earphone
F: Bolts and nuts for fixing module and EVB
Funciona con los módulos
M10/M66/M72/M85/M95 |
